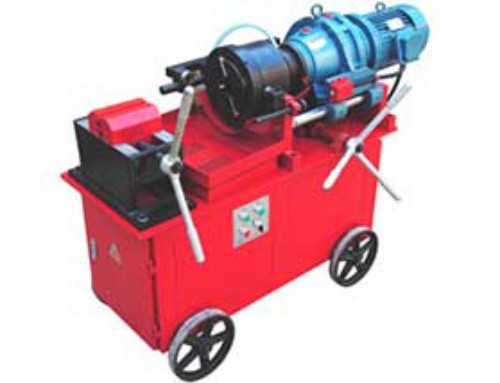

RT40A Rebar Thread Rolling Machine

Project Description

RT40A Rebar Thread Rolling Machine

Machine Function:

AEONO RT40A REBAR THREAD ROLLING MACHINE is used to strip rebar rib first and roll parallel thread on rebar end. After that two threaded rebar sectors are connected by Rebar coupler. It can process HRB335, HRB400, HRB500 reinforced bar with diameter 16–40mm. The max thread length is 80mm.

Machine Advantages:

Rebar rib peeling straight thread overcomes defects of strapping, welding, extrusion, taper thread, upsetting straight thread, and combines the respective advantages
1) High precision thread
2) High connection strength
3) High construction efficiency
4) Easy installation, operation and maintenance
5) Small volume, light weight, power consumption
6) Low investment for the machine
7) Shortening construction period
8) Reduce the labor intensity of workers
9) Reasonable structure, reliable performance
10)Full-tension splice, 100% bar break under high tensile strength
It is the upgrading technology of steel bar connection in the construction industry.

Workshop & Warehouse

Rebar Threader Workshop Rebar Threader Warehouse


Cutting Rib Rebar Thread Rolling

Main Spare Parts

Cutting Blade: It is used to cut ribs.Cutting Blade Cutting Blade in the machine head

Thread Roller: it is used to roll thread on the rebar end.Thread Roller Thread Roller in the machine head


Rebar Splice Bolts

Packing Detail

Plastic bag inner package Wooden Case Outer Package

RT40A Rebar Thread Rolling Machine Parameters

Model: RT40A Rebar Diameter: 16-40MM
Motor Power: 4KW 8A Voltage: 3-380V 50HZ
Thread Angle: 60/75° Thread Pitch: 2.5-3.5MM
Spindle Speed: 48-82 r/min Max Thread Length: 80MM
Dimension: 1*0.7*0.9M Net Weight: 400kg
Certification: ISO9001-2008 Package: Wooden Case
